Centrifugal Finishing Machine
Centrifugal Finishing Machine
This is a finishing machine that uses the centrifugal force which occurs while the axis are rotated at high speed by attaching a hexagonal barrel tank in the symmetric position of the turret. When the turret is rotated over 60R.P.M, the centrifugal force and pressure are produced in the MASS within the barrel tank. The barrel tank that was designed to rotate in the opposite direction against the turret can do the finishing work in a short time by producing strong pressure and friction during engineering works mixed with the barrel media in the most distant inner wall of the circumference by the centrifugal force. The centrifugal finishing machine is good for small products, so it can do delicate finishing work in relation to precision products. It can do the finishing on super-small components or small products which can easily be broken or bent without changing their shape or without damage through the proper and correct RPM.

MACHINE TYPE       Interior of multi-barrel finishing tank
Centrifugal Finishing Machine   Centrifugal Finishing Machine   Centrifugal Finishing Machine   Centrifugal Finishing Machine
GEAR TYPE   TIMING TYPE

Changes in MASS according to R.P.M.
Fr=v²/Rg Fr≒0.5 0.5<Fr<0.75 Fr≒0.75 Fr≒1 Fr>>1
Fr*n2R ≒0.15m/s2 0.15<Fr*<0.2 ≒0.2 ≒0.25 >>0.25
ROTATION
R.P.M 60 90 120 180 250


· Features
- 30-fold higher performance than rotary barrel
- Consistent finishing effect
- Excellent gloss
- Less noise than other machines
- Excellent in handling R part and inner grinding

· OPTION
- Vibratory separator
- PU LINING
- Speed change device
- Automatic centrifugal barrel
- Recovery of barrel media and supply device

SPECIFICATIONS
Category G-30 G-60 G-80 G-120 G-160
Capacity 30 (7.5X4) 60(15X4) 80(20X4) 120(30X4) 160(40X4)
Main motor 2.2 (3) 2.2(3) 3.75(5) 5.5(7.5) 7.5(10)
Rotation(RPM) 180 150 120 120 100
Size 810X1100X
1250
1200X1180X
16701
1200X1280X
1670
1300X1400X
1670
1400X1520X
2090
Weight 530 690 760 950 1150
- The size of Barrel finishing tanks can be changed according to angles and shape.

Centrifugal Finishing Machine(MINI TYPE)
- World's first dry barrel technologies
- Dry barrel technologies solve waste water problems.

SPECIFICATIONS
Category GS-4B GS-6B
Capacity 1X4 (¢120 X W 132) 1.5X4(¢145X W 145)
Main motor(KW) AC 220V 0.75KW 4P AC 220V 0.75KW 4P
Rotation(RPM) 270RPM 270RPM
LINING POLYURETHANE POLYURETHANE
Size 600X610X600 600X610X600

Vibratory Finishing Machine
Standard Type
Vibratory Finishing Machine

Special Type

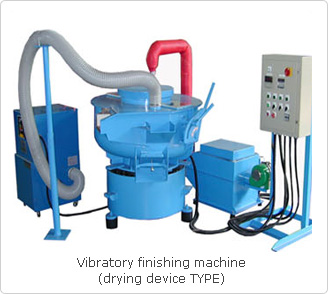

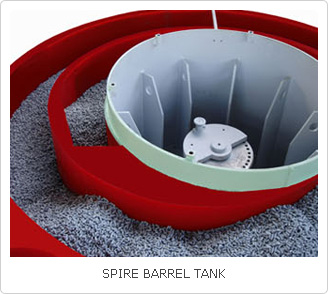

SPRIRE TYPE



This is a finishing machine that applies the vibration and screw motion that occurs because of the unbalanced weight that is fixed to both ends of a motor and is most widely used for the barrel finishing area.
Engineering works mixed with Barrel Media do the finishing by performing friction motion within the barrel tank. They are good for rough finishing and gloss work.
Good for various surface treatments, such as removing burr and scale, treatment before coating and burnishing, in particular.
This machine is especially good for the finishing of medium and small products whose barrel media aren’t replaced frequently. If the finishing time for one time doesn’t exceed two hours, it can be more effective than a centrifuge barrel finishing machine.
In the GVA type to which a screening device is attached, engineering works and barrel media are automatically selected and separated after finishing, saving labor and time.



SPECIFICATIONS
Category GVA-100 GVA-200 GVA-300 GVA-450 GVA-600
Capacity 100 200 300 450 600
Main motor 2.2(3) 2.2(3) 3.7 (5) 5.5*\(7.5) 7.5(10)
Size ¢1050 X 1200 ¢1250 X 1350 ¢1450 X 1400 ¢1750 X 1450 ¢2000 X 1500
Weight 400 650 870 1400 1750

Roll-flow Finishing Machine
The finishing tank of this finishing machine consists of a fixed wall and lower turret. If the turret rotates and powerfully pushes the barrel media and components to the fixed wall, the barrel media and components which hit the wall return to the turret, and then the turret pushes them to the wall again. During this process, the barrel media and components form a spiral whirlpool, creating a strong cutting power or gloss through a rubbing power. This machine hasn’t become popular despite such features, because residues of barrel media or components were caught in the cap between the fixed wall and turret, causing problem s. In addition, the cap was easily worn, so users experienced problems in the follow-up service, including replacement of PU lining. This machine that is made by our company, however, is really innovative because such problems have been perfectly solved.
Roll-flow Finishing Machine

ROLL-FLOW BARREL TANK   GRF type principle diagram
ROLL-FLOW BARREL TANK   ROLL-FLOW BARREL TANK

ROLL-FLOW BARREL TANK

SPECIFICATIONS
Category GRF-100T GRF-200S GRF-380S
Barrel tank SIZE ¢600 X 400 (H) ¢830 X 430 (H) ¢1050 X 470 (H)
Capacity 100 200 380
Workload 65 130 250
Main motor 3.7(5) 7.5(10) 11 (15)
Weight 1050 1200 1400
As the above-mentioned table was made based on our company’s criteria, we can produce goods of special size according to the demands of users.

Rotatory Finishing Machine
Rotatory Finishing Machine

SPECIFICATIONS
Category GR60 GR100 GR150 GR200 GR300 GR400
Capacity 50 100 150 200 300 400
Main motor 0.4 0.4 0.75 1.5 2.2 3.75
(W) X (L) 750 X 750 950 X 800 1050 X 900 1150X 000 1250X1000 1350X1000
(H) 1000 1200 1250 1300 1400 1500
Weight 150 190 230 300 400 550
- The BARREL TANK is manufactured in a hexagonal type.
- We can make goods of optional angle and volume according to the demands of customers.


Vibratory Separator

Category Size
Separating net size
Weight
Separating capability
VSS-35 1430x600x650 160
330x660 25
VSS-40 1550x650x700 170
380x690 30
VSS-45 1610x700x700 190
430x750 35
VSS-50 2000x750x750 220
480x1000 40
Vibratory Separator

Other Barrel Machines

Wastewater Disposal Plant

Wastewater Disposal Plant


SPECIFICATIONS

Type Basket (L)
1GHL CJFLFID
Motor
SIZE
DT35 20 1
10 610X940X500
DT40 45 2
15 710X1060X580
DT45 50 2
20 800X1100X580
DT50 60 3
25 840X1150X600
Centrifugal dehydrator


SPECIFICATIONS

Type BARREL TANK SIZE
R.P.M
KMD 300 300Ø
2000
KMD 500 500Ø
2000
Magnetic Finishing Machine
